Week of 2024-01-08: Hourglass model and Breadboard
Where I play with the hourglass model and use Breadboard as a concrete example to examine it in detail.
Hourglass model and Breadboard

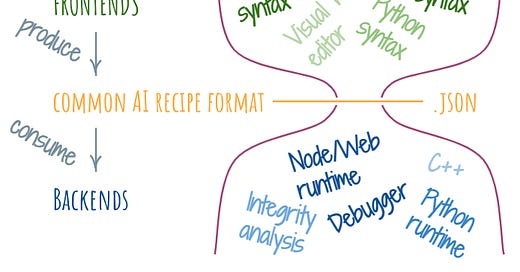

Architecturally, Breadboard aspires to have an hourglass shape to its stack. As Bernhard Seefeld points out, this architecture is fairly common in compilers, and other NLP tools, so we borrowed it for Breadboard as well.
In this brief essay, I will use the Breadboard project to expand a bit on the ins and outs of the hourglass-shaped architecture.
At the waist of the hourglass, there’s a single entity, a common format or protocol. In Breadboard, it is a JSON-based format that we use to represent any AI recipe (I called them AI patterns earlier, but I like the word “recipe” better for its liveliness). When you look through the project, you’ll notice that all recipes are JSON files of the same format.
The actual syntax of the JSON file may change, but the meaning it captures will stay the same. This is one of the key tenets of designing an hourglass stack: despite any changes around it, the semantics of the waist layer must stay relatively constant.
The top part of the hourglass is occupied by the recipe producers, or “frontends” in the compiler lingo. Because they all output to the same common format, there can be a great variety of these. For example, we currently have two different syntaxes for writing AI recipes in TypeScript and JavaScript. One can imagine a designer tool that allows creating AI recipes visually.
Nothing stops someone from building a Python or Go or Kotlin or any other kind of frontend. As long as it generates the common format as its output, it’s part of the Breadboard hourglass stack.
The bottom part of the stack is where the recipe consumers live. The consumers, or “backends”, are typically runtimes: they take the recipe, expressed in the common format and run it. At this moment in Breadboard, there’s only a Javascript runtime that runs in both Node and Web environments. We hope that the number of runtimes expands. For instance, wouldn’t it be cool to load a Breadboard recipe within a colab? Or maybe run it in C++? Breadboard strives for all of these options to be feasible.
Runtimes aren’t the only kinds of backends. For instance, there may be an analysis backend, which studies the topography of the recipe and makes some judgments about its integrity or other kinds of properties. What sorts of inputs does this recipe take? What are its outputs? What are the runtime characteristics of this recipe?
Sometimes, it might be challenging to tell a backend apart from a frontend: an IDE may include both frontends (editor, compiler, etc.) and backends (runtime, debugger, etc.). However, it’s worth drawing this distinction at the system design stage.
The main benefit of an hourglass stack design is that it leaves a lot of room for experimentation and innovation at the edges of the stack, while providing enough gravitational pull to help the frontends and backends to stick together. Just like for any common language or protocol, the waist of the hourglass serves as a binding agreement between the otherwise diverse consumer and producer ideas. If this language or protocol is able to convey valuable information (which I believe we do with AI recipes in Breadboard), a network effect can emerge under the right conditions: each new producer or consumer creates combinatorial expansion of possibilities – and thus, opportunities for creating new value – within the stack.
It is far too early to tell whether we’ll be lucky enough to create these conditions for Breadboard, but I am certainly hopeful that the excitement around AI will serve as our tailwind.
The key risk for any hourglass stack is that it relies on interoperability: the idea that all consumers and producers interpret the common format in exactly the same way. Following the Hyrum’s Law, any ambiguity in the semantics of the format will eventually result in disagreements across the layers.
These disagreements are typically trailing indicators of the semantic ambiguities. By the time the bugs are identified and issues are filed, it is often too late to fix the underlying problems. Many languages committees spend eons fighting the early design mistakes of their predecessors.
As far as I know, the best way to mitigate this risk is two-fold. We must a) have enough experience in system design to notice and address semantic ambiguities early and b) have enough diversity of producers and consumers within the hourglass early in the game.
To be sure, a system design “spidey sense”, no matter how well-developed, and the ability to thoroughly exercise the stack early don’t offer 100% guarantees. Interoperability tends to be a long-term game. We can flatten the long tail of ambiguities, but we can’t entirely cut it off. Any hourglass-shaped architecture must be prepared to invest a bit of continuous effort into gardening its interoperability, slowly but surely shaving down the semantic ambiguities within the common format.
